Game of Life

examples/GameOfLife/ is Conway's Game of Life built from gates. Each cell of a 32×32 grid counts its live neighbours with adders, applies the rule with a handful of AND, OR and NOT gates, and stores its state in a master-slave flip-flop. One clock cycle advances the whole grid by one generation.

It is also the example of an shdl project: it has a manifest and a lock file, takes its adders from the arith package in the Circuit Circus registry, and ships a test file that shdl test runs.

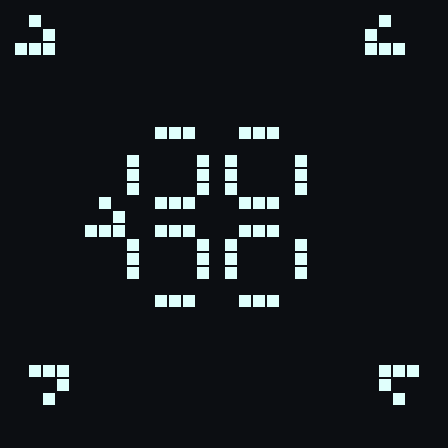

Gliders and a pulsar on the 32×32 grid, rendered from the gate-level simulation

What it does

The grid wraps around at the edges (a torus), so every cell has exactly eight neighbours. On each clock cycle every cell applies the B3/S23 rule at once:

Cell now	Live neighbours	Cell next
dead	3	alive (born)
dead	anything else	dead
alive	2 or 3	alive (survives)
alive	anything else	dead

While the Load input is high, the clock loads a pattern from the seed inputs instead of computing the next generation.

Files

File	Contents
`shdl.toml`	The project manifest
`shdl.lock`	The lock file: exact versions and hashes of `arith` and `gates`
`cell.shdl`	`Cell`: one Life cell
`msffe.shdl`	`SRLatch`, `DLatch` and `MSFFE`, a local module
`gen_life.py`	Generates a grid of any size as SHDL source
`life32.shdl`	The generated 32×32 grid, `Life`, the project's top component
`tests/gameoflife.tests.json`	Three `Cell` test cases for `shdl test`
`validate.py`	A two-phase clock driver, and a check of an 8×8 grid against a Python model
`gol_render.py`	Runs the 32×32 grid for 120 generations and writes `life.gif`

The project

shdl.toml
# Conway's Game of Life as a shdl project:
#   shdl install && shdl build && shdl test
[project]
name = "gameoflife"
version = "0.1.0"
main = "life32.shdl"
top = "Life"
shdl = ">=1.1.0"

[dependencies]
arith = "^0.1.0"

main and top name the file and component that shdl build compiles.
shdl = ">=1.1.0" is the toolchain version the project needs.
arith = "^0.1.0" is the one registry dependency: any 0.1.x version of the arith package. arith itself depends on gates, so installing it fetches both.

shdl.lock records what was resolved: for each package the exact version, the module file (arith.shdl, gates.shdl), its exported components, the SHA-256 of its contents and the registry it came from. shdl install fetches exactly those versions, and verifies the hashes, into shdl_modules/.

The project mixes both kinds of dependency. cell.shdl imports the adders from the package and the flip-flop from the file next to it:

use arith::{HalfAdder, FullAdder};
use msffe::{MSFFE};

msffe resolves because msffe.shdl sits next to the file that imports it. arith resolves because shdl build passes each shdl_modules/<package>/ directory to the flattener as an include directory. shdl_modules/, build/ and the 8×8 grid that validate.py generates are listed in the project's .gitignore.

See Projects, Project manifest, Packages and Imports.

Build, test and run

shdl install downloads from the registry, so the blocks in this section are not run by the docs checker; their output was captured from a real run. From the project directory in a checkout of the repository, with PySHDL 1.1.0 installed:

cd examples/GameOfLife
shdl install

  fetched arith 0.1.0 (8.8 kB)
  fetched gates 0.1.0 (2.3 kB)

shdl build flattens life32.shdl and compiles it to a shared library in build/. It takes about 15 seconds, most of it in the C compiler:

shdl build

built /…/GameOfLife/build/gameoflife.dylib

The command prints the library's absolute path, shortened here. shdl test runs every *.tests.json file in tests/:

shdl test

[gameoflife.tests.json]
  ok    Cell
  ok    Cell
  ok    Cell

3/3 cases green

The three cases drive a single Cell through the two-phase clock and check its output after each cycle:

Case	Inputs	Expected `Q`
Seed load	`Load = 1`, `Seed = 1`, no neighbours; then `Load = 0`	1, then 0 (a lone cell dies)
Birth, survival, death	3 neighbours; then 2; then 1	1 (born), 1 (survives), 0 (dies)
Overcrowding	Seeded alive with 4 neighbours; then `Load = 0`	1, then 0

See shdl CLI and Testing for the commands and the test file format.

validate.py checks the hardware against an independent Python model of the rules. It generates an 8×8 grid with gen_life.py, loads a blinker and a glider, and compares all 64 cells after every generation:

python validate.py

loaded pattern, hardware vs reference match: True
gen  1: match=True
gen  2: match=True
gen  3: match=True
gen  4: match=True
gen  5: match=True
gen  6: match=True
gen  7: match=True
gen  8: match=True
gen  9: match=True
gen 10: match=True
gen 11: match=True
gen 12: match=True
ALL MATCH

gol_render.py does the same on the full 32×32 grid, seeded with five gliders and a pulsar, for 120 generations, then paints the GIF at the top of this page. It needs Pillow, which PySHDL does not install:

python gol_render.py

building 32x32 circuit (C compile of ~92160 gates)...
ran 120 generations; mismatches vs reference: 0
wrote /…/GameOfLife/life.gif

The gate count in its first line is a rough estimate of 90 gates per cell; the real figure is below.

One cell

cell.shdl has three parts:

A popcount. Four full adders and four half adders add the eight neighbour bits into a 4-bit count T3 T2 T1 T0. The first layer adds neighbours 1 to 3, 4 to 6 and 7 to 8 in three small adders, and the next layers add their 2-bit results.
The rule. The count is 2 or 3 exactly when T3 and T2 are 0 and T1 is 1; T0 then separates 3 from 2. So born is that term AND T0, and stays is the current state AND the term AND NOT T0. The next state is born OR stays.
A load multiplexer and a flip-flop. D = Load ? Seed : next feeds an MSFFE whose load enable is tied to the constant One = 1, so it captures D on every clock.

    One = 1;            # tie the flip-flop's load-enable high
    ff: MSFFE;

    connect {
        ...
        # B3/S23: next = eq3 OR (Self AND eq2)
        ff.Q  -> surv.A;  eq2g.O -> surv.B;
        eq3g.O -> nx.A;   surv.O -> nx.B;

        # load mux: D = Load ? Seed : next
        Load  -> nLoad.A;
        Seed  -> mSeed.A;  Load   -> mSeed.B;
        nx.O  -> mNext.A;  nLoad.O -> mNext.B;
        mSeed.O -> dmux.A; mNext.O -> dmux.B;

        # the flip-flop
        dmux.O -> ff.D;   One -> ff.LD;
        Phi1 -> ff.Phi1;  Phi2 -> ff.Phi2;
        ff.Q -> Q;
    }

ff.Q -> surv.A is the cell reading its own state: the loop through the flip-flop is what makes the cell sequential. One is a constant and flattens to a single __VCC__ pin.

msffe.shdl is the same SRLatch, DLatch and MSFFE chain as examples/srLatch.shdl, examples/dLatch.shdl and the SR16 CPU's seq.shdl, gathered in one file so that the project does not depend on the repository's examples/ directory. See the latches and register pages.

Size and timing

	`Cell`	`Life` (32×32)
Gates	57: 12 XOR, 24 AND, 10 OR, 10 NOT, 1 `__VCC__`	58,368, exactly 1,024 × 57
Connections	103	105,472
`init` entries	8	8,192
Port bits	12 in, 1 out	1,027 in, 1,024 out
`max_depth`	1	1
`has_feedback`	true	true

The 57 gates of a cell: 28 in the adders (a half adder is an XOR and an AND, a full adder is two half adders and an OR), 7 to compare the count, 2 for the rule, 4 for the load multiplexer, 15 in the flip-flop and the One pin. The init entries are the SR latch seeds, four in each of the two D latches of every flip-flop. max_depth is 1 because both circuits have feedback and the depth is measured with the loops cut; see Simulation model.

The two-phase clock

Every cell reads its neighbours' Q outputs and writes its own flip-flop in the same cycle. That only works because a flip-flop's output does not change while the neighbours are still reading it. The MSFFE guarantees this with two non-overlapping clock phases:

While Phi1 is high, each master latch captures D: the next state, computed from the current outputs.
While Phi2 is high, each slave latch copies its master to Q.

Nothing a master captures reaches Q before Phi2, and by then Phi1 is low, so every cell computes its next state from the same generation, exactly as synchronous hardware would. validate.py drives one clock cycle like this:

    def _clock(self):
        c = self.c
        c.step_settle(self.s)
        c.poke("Phi1", 1); c.step_settle(self.cap)
        c.poke("Phi1", 0); c.step_settle(self.gap)
        c.poke("Phi2", 1); c.step_settle(self.cap)
        c.poke("Phi2", 0); c.step_settle(self.gap)

The defaults are 80 cycles to settle, 16 for each phase and 4 for each gap. step_settle(n) runs up to n cycles and stops early once a cycle changes no gate, so the budgets are ceilings; see the Python API. The test file uses the same shape with exact counts: 24 cycles to settle, then 16, 4, 16 and 4.

To load a pattern, validate.py sets Load to 1, writes one row per seed port (bit 0 is column 1), runs one clock cycle and sets Load back to 0. After that, each clock cycle is one generation, and each Q port holds one row.

The SR16 CPU page covers the same clocking in more depth.

Generating the grid

life32.shdl is 332 KB of generated SHDL. Rather than use generators, whose index arithmetic has no modulo operator for the wrap-around, gen_life.py writes out every cell and every connection from Python. It takes the width, the height and the output file:

$ python examples/GameOfLife/gen_life.py 4 4 life4.shdl
wrote life4.shdl: 4x4 grid (16 cells)

The generated file declares one seed port and one output port per row, then one Cell instance per square, then each cell's connections on one line:

from pathlib import Path

lines = Path("life4.shdl").read_text().splitlines()
print("\n".join(lines[6:15]))
i = lines.index("        # cell (1,1)")
for conn in lines[i + 1].split(";")[:-1]:
    print(conn.strip() + ";")

Output
use cell::{Cell};

top component Life(S1[4], S2[4], S3[4], S4[4], Load, Phi1, Phi2)
    -> (Q1[4], Q2[4], Q3[4], Q4[4]) {

    c1_1: Cell;  c1_2: Cell;  c1_3: Cell;  c1_4: Cell;
    c2_1: Cell;  c2_2: Cell;  c2_3: Cell;  c2_4: Cell;
    c3_1: Cell;  c3_2: Cell;  c3_3: Cell;  c3_4: Cell;
    c4_1: Cell;  c4_2: Cell;  c4_3: Cell;  c4_4: Cell;
c4_4.Q -> c1_1.N1;
c4_1.Q -> c1_1.N2;
c4_2.Q -> c1_1.N3;
c1_4.Q -> c1_1.N4;
c1_2.Q -> c1_1.N5;
c2_4.Q -> c1_1.N6;
c2_1.Q -> c1_1.N7;
c2_2.Q -> c1_1.N8;
S1[1] -> c1_1.Seed;
Load -> c1_1.Load;
Phi1 -> c1_1.Phi1;
Phi2 -> c1_1.Phi2;
c1_1.Q -> Q1[1];

Cell (1,1) is in the top-left corner, so five of its neighbours wrap around: c4_4, c4_1 and c4_2 are in the bottom row, and c1_4 and c2_4 are in the last column. The neighbour offsets come from this table in gen_life.py, applied modulo the grid size:

DELTAS = [(-1, -1), (-1, 0), (-1, 1),
          ( 0, -1),          ( 0, 1),
          ( 1, -1), ( 1, 0), ( 1, 1)]

The order does not matter, because the cell only counts its neighbours.

Each row gets its own S and Q port rather than one port for the whole grid, because no port can be wider than 64 bits in the compiled library's C interface: a 32×32 grid as one port would need 1,024. See C ABI. With one port per row, a grid can be up to 64 cells wide.

To simulate another size, generate it next to cell.shdl, then either set main in shdl.toml to the new file, or load it with Circuit and pass the project directory and each shdl_modules/<package>/ directory as include_dirs, as validate.py does.

See Projects to start a project of your own, and Packages for how registry packages are installed and resolved.
